Reflectance FTIR Spectra

• This Jupyter notebook provides an example workflow for processing reflectance FTIR spectra for thicknesses of olivine and glasses through PyIRoGlass.

• The Jupyter notebook and data can be accessed here: https://github.com/SarahShi/PyIRoGlass/blob/main/docs/examples/reflectance_ftir/.

• You need to have the PyIRoGlass PyPi package on your machine once. If you have not done this, please uncomment (remove the #) symbol and run the cell below.

#!pip install PyIRoGlass

Load Python Packages

# Import packages

import PyIRoGlass as pig

%matplotlib inline
%config InlineBackend.figure_format = 'retina'

pig.__version__

'0.6.6'

Olivine Thicknesses

The workflows for processing olivine and glass spectra are slightly different given variable refractive index (n) and wavenumbers (lambda) of applicability. We will walk through each individually.

# Change paths to direct to folder with olivine reflectance FTIR spectra

ref_path_ol = 'SPECTRA/OL/'

ol_loader = pig.SampleDataLoader(spectrum_path=ref_path_ol)
ref_dfs_dict_ol = ol_loader.load_spectrum_directory(wn_high=2700, wn_low=2100)

Let’s look at what ref_dfs_dict_ol, a dictionary of reflectance FTIR spectra look like. Samples are identified by their file names and the wavenumber and absorbance data are stored for each spectrum.

ref_dfs_dict_ol

{'AC4_OL27_REF_b':             Absorbance
 Wavenumber
 2100.189      0.911977
 2102.118      0.908623
 2104.046      0.904154
 2105.975      0.899443
 2107.903      0.895345
 ...                ...
 2692.253      0.759809
 2694.182      0.759502
 2696.111      0.759461
 2698.039      0.758946
 2699.968      0.758412

 [312 rows x 1 columns],
 'AC4_OL48_REF_a':             Absorbance
 Wavenumber
 2100.189      0.858248
 2102.118      0.850497
 2104.046      0.843580
 2105.975      0.837450
 2107.903      0.833140
 ...                ...
 2692.253      0.672430
 2694.182      0.672987
 2696.111      0.673518
 2698.039      0.675356
 2699.968      0.675208

 [312 rows x 1 columns]}

The reflectance index (n) is a key input for this method. In olivine, the refractive index is compositionally dependent. Deer, Howie, and Zussman parameterize this value for olivine in “An introduction to the rock-forming minerals”. The pig.reflectance_index_ol function performs this calculation, inputting forsterite content and returning the reflectance index.

# Use DHZ parameterization of olivine reflectance index.

n_ol = pig.reflectance_index_ol(0.72)

print(n_ol)

1.7097733333333334

We’re ready to use the pig.calculate_mean_thickness function now. We input the arguments:

• dfs_dict: Dictionary where the keys are file identifiers and values are DataFrames with spectral data

• n: Reflectance index

• wn_high and wn_low: Wavenumber range

• plotting: Boolean indicating whether figures should be made

• phaseol: Boolean indicating whether the phase is olivine

and return:

• thickness: DataFrame of resultant thickness data

We use the wavenumber range of 2700-2100 cm \(\mathrm{^{-1}}\) in olivine — see the paper for more details. We remove a baseline from the spectrum to remove variability existing in the absorbances and to allow the data to be centered around 0. This does not change amplitude. We have the phaseol boolean for specifying whether your phase is olivine or not.

pig.calculate_mean_thickness function workflow is as follows:

• Remove baseline to center the data around an absorbance of 0

• Apply a Savitzky-Golay filter to smooth the data for single-spikes

• Identify extrema

• Calculate wavenumber differences between extrema

• Calculate mean and \(\sigma\) thickness

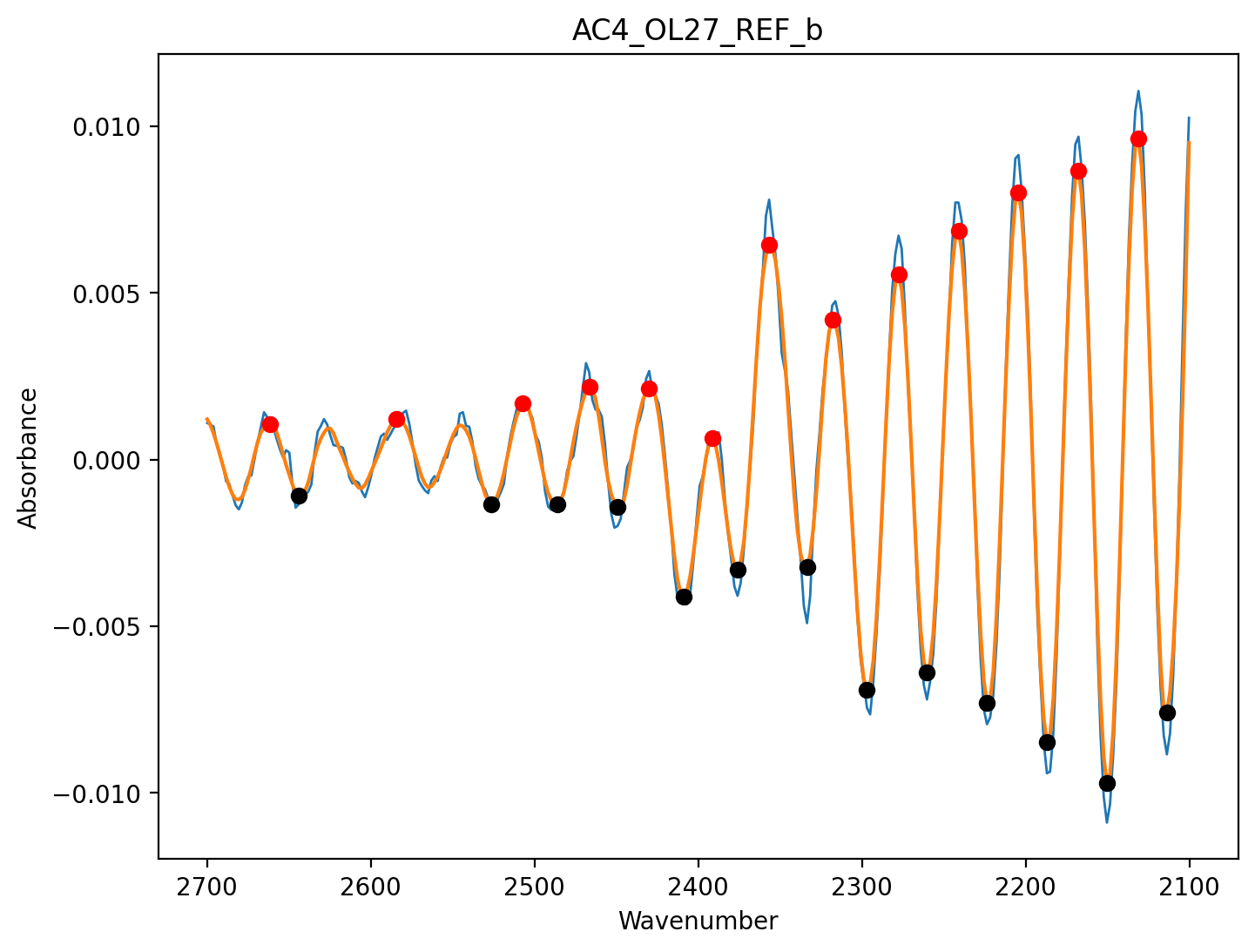

fuego_thickness = pig.calculate_mean_thickness(ref_dfs_dict_ol, n=n_ol, wn_high=2700, wn_low=2100, plotting=True, phaseol=True)

Display thickness, the DataFrame of resultant thickness data. The DataFrame quantifies mean and \(\sigma\) thicknesses just from the maxima, minima, and both. We recommend using Thickness_M and Thickness_STD, which represent the mean and \(\sigma\) thickness across all extrema.

fuego_thickness

	Thickness_M	Thickness_STD	Peak_Thicknesses	Peak_Thickness_M	Peak_Thickness_STD	Trough_Thicknesses	Trough_Thickness_M	Trough_Thickness_STD
AC4_OL27_REF_b	78.12	4.52	[79.81, 79.81, 79.81, 79.81, 72.21, 75.82, 84....	77.93	3.63	[79.81, 79.81, 79.81, 79.81, 79.81, 79.81, 68....	78.29	5.19
AC4_OL48_REF_a	38.35	1.15	[39.9, 37.91, 37.91, 36.98]	38.17	1.07	[36.98, 39.9, 38.88]	38.59	1.21

Glass Thicknesses

Now, let’s turn to glass. Slight variations exist within reflectance index, wavenumbers of interest, and the phaseol boolean. We use the Kumagai and Kaneoka, 2003 reflectance index of 1.546 for basaltic glass in this example. The wavenumber range is extended to 2850-1700 cm \(\mathrm{^{-1}}\). See the paper for more details.

I won’t show all the intermediate steps, and will jump forward to the results since the workflows are identical aside from these parameters.

# Change paths to direct to folder with glass reflectance FTIR spectra

ref_path_gl = 'SPECTRA/GL/'

gl_loader = pig.SampleDataLoader(spectrum_path=ref_path_gl)
ref_dfs_dict_gl = gl_loader.load_spectrum_directory(wn_high=2850, wn_low=1700)

# n=1.546 in the range of 2000-2700 cm^-1 following Nichols and Wysoczanski, 2007 for basaltic glass

n_gl = 1.546

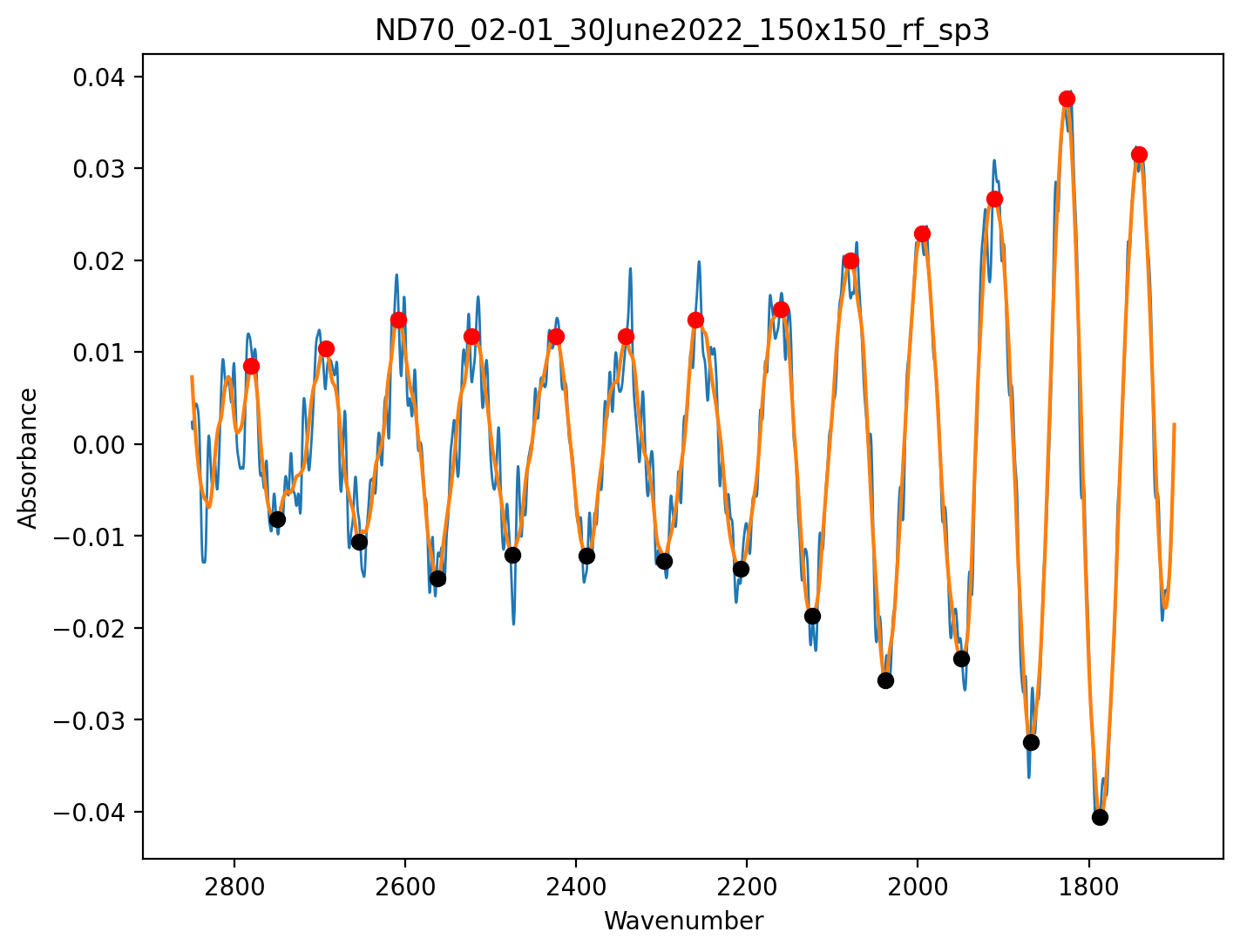

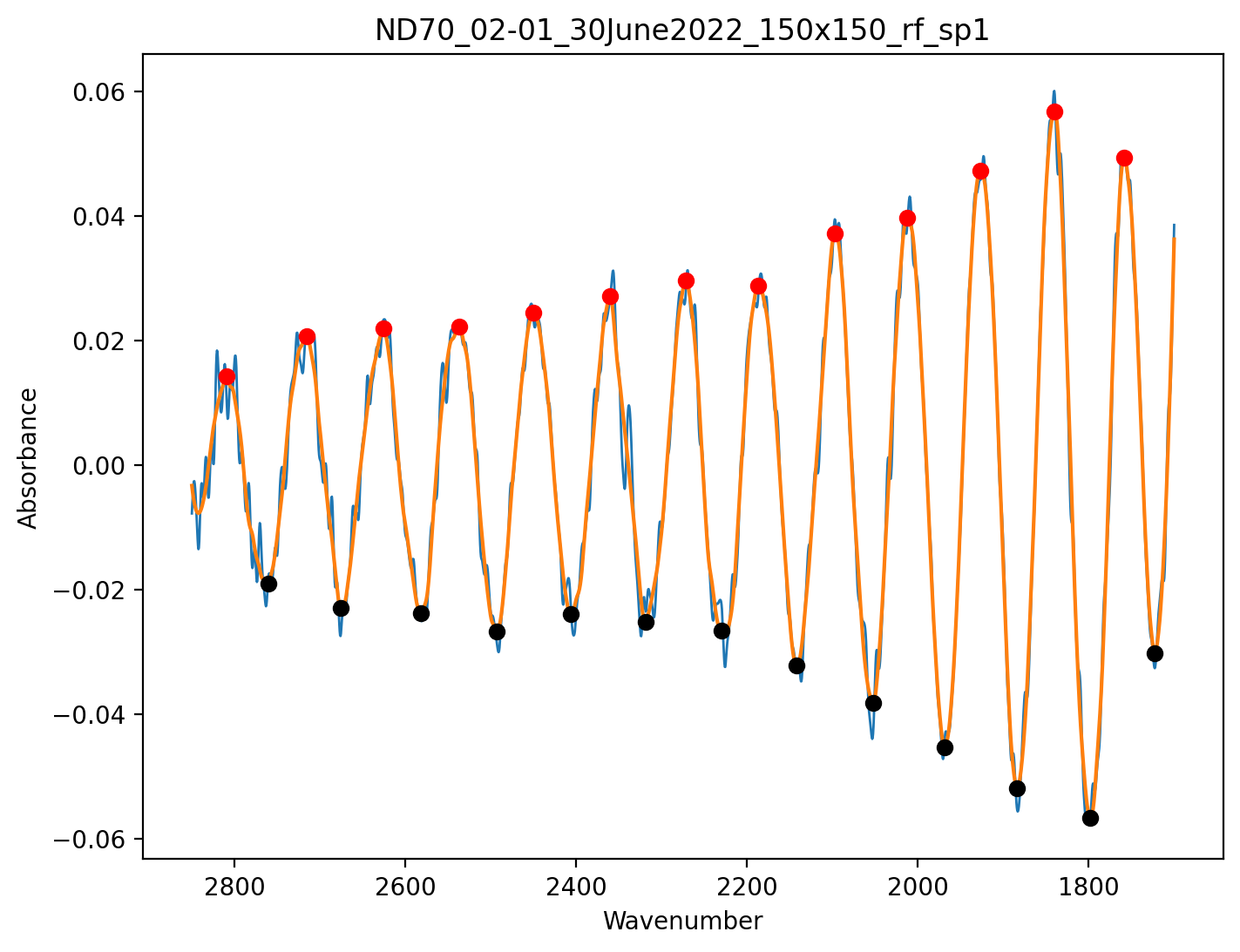

glass_thickness = pig.calculate_mean_thickness(ref_dfs_dict_gl, n=n_gl, wn_high=2850, wn_low=1700, plotting=True, phaseol=False)

glass_thickness

	Thickness_M	Thickness_STD	Peak_Thicknesses	Peak_Thickness_M	Peak_Thickness_STD	Trough_Thicknesses	Trough_Thickness_M	Trough_Thickness_STD
ND70_02-01_30June2022_150x150_rf_sp1	37.01	0.8	[37.27, 37.68, 35.87, 38.11, 36.46, 36.26, 37....	36.78	0.77	[37.69, 38.11, 38.55, 36.26, 36.66, 36.26, 37....	37.22	0.78
ND70_02-01_30June2022_150x150_rf_sp2	36.33	1.72	[37.06, 37.47, 38.33, 35.49, 34.76, 33.37, 33....	35.57	1.71	[38.55, 37.27, 37.69, 36.86, 37.69, 38.55, 34....	37.18	1.26
ND70_02-01_30June2022_150x150_rf_sp3	37.68	1.28	[37.9, 38.11, 38.33, 38.55, 39.69, 39.69, 39.2...	38.44	0.84	[36.46, 37.68, 38.77, 36.26, 35.31, 37.27, 36....	36.74	1.1
